Farpoint Bahtinov Mask for Celestron 8-inch SCT

Easily focus your Schmidt-Cassegrain telescope.

  • For Celestron 8-inch SCT
  • Achieve sharp focus easily
  • UK warranty
Farpoint Bahtinov Mask for Celestron 8-inch SCT
  • Product code: BMC8
  • Availability: In stock
  • Despatch: 2 business days
  • Retail Price: £ 21.00
Shipping rates
England & Wales
£ 6.00
Scotland Central & South
£ 6.00
Scotland North
£ 6.00
UK islands (from)
£ 6.00

Description

Bahtinov masks are one of the best tools for manually focusing your telescope available to astrophotographers. In 2005, Pavel Bahtinov, a Russian amateur telescope maker and astronomer detailed a new way to easily focus your DSLR, CMOS or CCD camera for astrophotography by adding a mask that matches the diameter of your telescope.

Bahtinov masks are a less expensive method of getting focus on objects in the night sky compared to a standard motor focuser. With the right mask and setup it’s easy to get crystal clear focus on a star in less than 90 seconds.

Note: Not appropriate for Edge HD models.


U.K. WARRANTY

INTERMEDIATE

VISUAL

ACCESSORY

PHOTOGRAPHY

ASTRONOMY
▼ read more ▼

Instructions

Attach a camera to the telescope, centre a fairly bright star and achieve rough focus. Then place the mask over the front aperture of your telescope by “hanging” it on the plastic screws from the front dew shield. Take a short exposure. The image of the star will show diffraction spikes. The “centre” set will most likely be shifted to one side or the other. This is showing the defocus.

Adjust the focus of the telescope and re-expose the star, once again showing the diffraction spike pattern. Iterate the process until the central diffraction spike is centred against the star and the other spikes. When a symmetrical pattern is achieved, the best possible focus is then reached. Simply remove the mask, centre the target object and take amazing, sharp images!

Farpoint manufactures this essential astrophotography tool out of virtually indestructible ABS plastic.

How it works

The slits in the mask are the focus assist, when the star is in focus it will appear on your screen display as an “X” with a line through the centre.

These masks will work equally as well on the end of a scope or on the end of a dew shield on top of that. The mask itself does not need to be perfectly centred on the scope this is due to the angle of the slits themselves.

Select a bright star, this will be your guiding object. Place the Bahtinov focusing mask on your telescope’s lens and secure it into place using the provided rubber tabs.

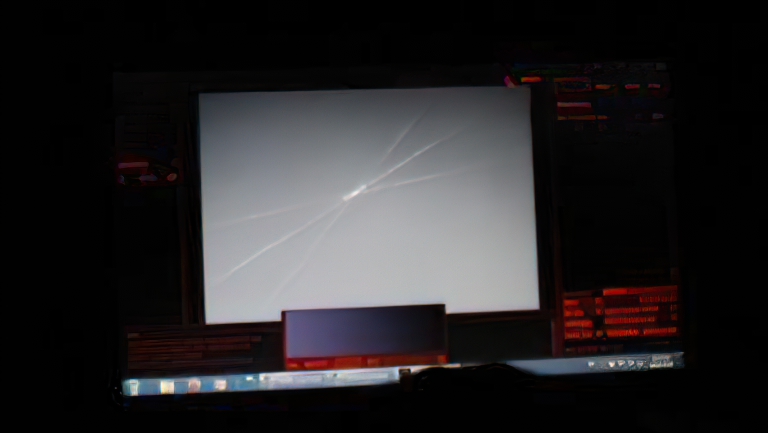

The slits in the mask design create a set of diffraction spikes on the star that will assist in the accuracy of our focus. It will appear on your DSLR display screen or computer as an “X” with a line through the centre (when in focus).

The diffraction spike pattern from a bright star using a Bahtinov mask.

As you adjust the focuser of your telescope, the central spike will move in and out of the X-pattern. If you are using capture software be sure to compensate for the lag time between exposures on the screen, typically 4-5 seconds.

The same process applies using Live view display on your DSLR camera. The difference is, the image will be much dimmer, as you are essentially looking at a live video feed rather than a short image exposure.

Carries full one year UK warranty.

▲ read less ▲
▼ show specification ▼
Farpoint Bahtinov Mask for Celestron 8-inch SCT
Attribute Specification
Product Code (SKU) BMC8
Universal Product Code (UPC) n/a
Warranty 1 year UK warranty
Experience Level Intermediate
Package Contents One Bhatinov Mask
Compatibility Celestron 8-inch Schmidt-Cassegrain telescope
▲ hide specification ▲
